2012 Honda Odyssey EXFACTORY OEM SERVICE PROCEDURE

Fuel Line/Quick-Connect Fitting Installation

NOTE: Before you work on fuel lines and fittings, read the Fuel Line/Quick-Connect Fitting Precautions (see FUEL LINE/QUICK-CONNECT FITTING PRECAUTIONS ).

Check the contact area (A) of the line (B) for dirt or damage, and clean it if needed.

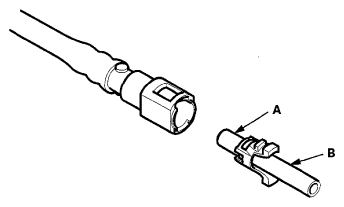

Fig 1: Checking Fuel Line Contact Area Damage And Dirt
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Insert a new retainer (A) into the connector (B) if the retainer is damaged, or after:
- replacing the fuel rail
- replacing the fuel feed line
- replacing the fuel pump
- replacing the fuel filter
- replacing the EVAP canister
- replacing the EVAP purge line
- replacing the fuel fill pipe
- replacing the fuel tank
- removing the retainer from the line
  NOTE: When you replace a retainer, use the same size and manufacturer as the original retainer (see FUEL LINE/QUICK-CONNECT FITTING PRECAUTIONS ).
