2012 Honda Odyssey EXFACTORY OEM SERVICE PROCEDURE
Power Window Master Switch Replacement

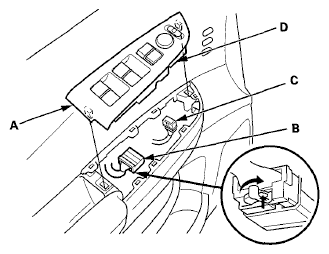

- Carefully remove the power window master switch panel (A).
- Disconnect the 37P connector (B) from the power window master switch, and the 13P connector (C) from the power mirror switch (D).

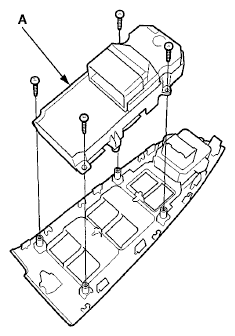

- Remove the four screws and the power window master switch (A).
- Install the switch in the reverse order of removal.
- Resetting the power window control unit (see RESETTING THE POWER WINDOW CONTROL UNIT ).
