2012 Honda Odyssey EXFACTORY OEM SERVICE PROCEDURE
Driving Position Memory Switch Test/Replacement
- Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).

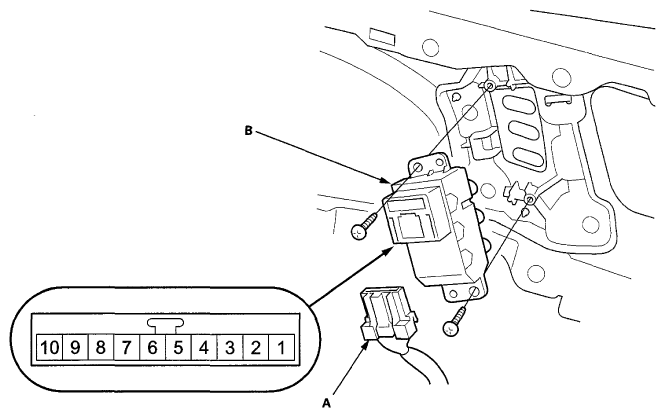

- Disconnect the 10P connector (A) from the driver's position memory switch (B).
- Remove the two screws, then remove the switch from the door panel.
- Check for continuity between the terminals in each switch position according to the table.NOTE:
- Make sure the correct test lead (+ or -) is placed on the terminal.
- When checking for continuity across the diode, use the diode setting () on the digital volt/ohm meter to check the diode bias.
- Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).
