2012 Honda Insight BaseFACTORY OEM SERVICE PROCEDURE
Transmission Range Switch Replacement
- Apply the parking brake, move the shift lever to N.
- Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).

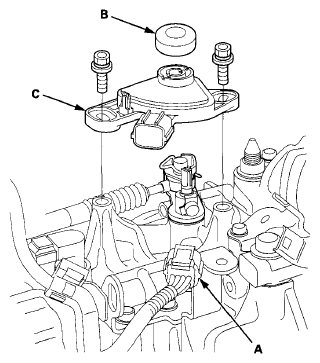

- Disconnect the transmission range switch 8P connector (A), and remove the control shaft cover (B).
- Remove the transmission range switch (C).
- Make sure the selector control shaft is in the N position. If necessary, move the shift lever from P to N.NOTE: Do not use the selector control shaft to adjust the shift position. If the selector control shaft tips are squeezed together it will cause a faulty signal or position due to play between the selector control shaft and the transmission range switch.
