2012 Honda Insight BaseFACTORY OEM SERVICE PROCEDURE
Shift Lock Stop/Shift Lock Stop Cushion Replacement
NOTE:
Make sure not to get any silicone grease on the terminal part of the connectors and switches, especially if you have silicone grease on your hands or gloves.
- Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).

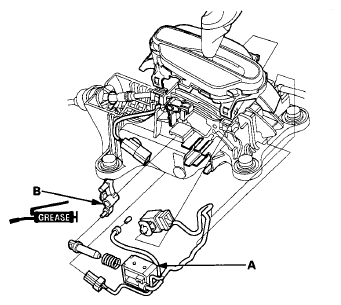

- Remove the shift lock solenoid assembly (A) (see SHIFT LOCK SOLENOID REPLACEMENT ).
- Remove the shift lock stop/stop cushion (B), and replace them as an assembly.
- Install the shift lock solenoid assembly (see SHIFT LOCK SOLENOID REPLACEMENT ).
- Install the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
