2012 Honda Insight BaseFACTORY OEM SERVICE PROCEDURE
Shift Lock Release/Release Spring Replacement
NOTE:
Make sure not to get any silicone grease on the terminal part of the connectors and switches, especially if you have silicone grease on your hands or gloves.
- Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
- Release the lock tab retaining the A/T gear position indicator panel, and move the indicator panel up.

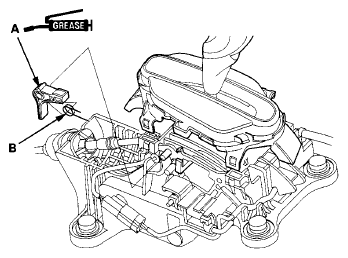

- Remove the shift lock release (A) and release spring (B), and replace the shift lock release or the release spring.
- Install the indicator panel on the shift lever bracket base.
- Install the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
