2012 Honda Insight BaseFACTORY OEM SERVICE PROCEDURE
Selector Control Shaft Removal/Installation

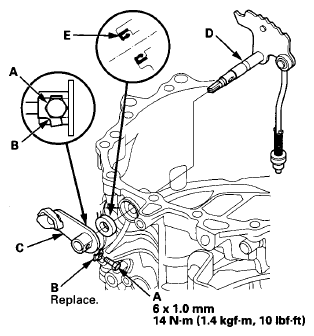

- Remove the bolt (A) and the lock washer (B), then remove the control lever (C) from the selector control shaft (D).
- Remove the selector control shaft from the transmission housing, then check the control lever and the selector control shaft for wear or damage, and replace them if necessary.
- Check for fluid leaks between the transmission housing and the oil seal (E). If there is a fluid leak, replace the oil seal with a new one.
- Install the selector control shaft in the transmission housing, and install the control lever on the selector control shaft.
- Install the bolt with a new lock washer.
