2012 Honda Insight BaseFACTORY OEM SERVICE PROCEDURE

CVTF Temperature Sensor Test

Remove the air cleaner assembly (see AIR CLEANER REMOVAL/INSTALLATION ).
Disconnect the solenoid harness 8P connector.

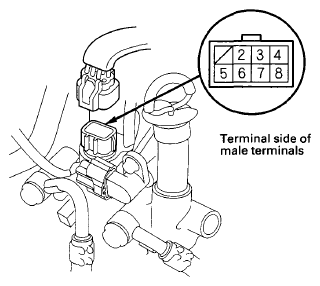

Fig 1: Identifying Solenoid Harness 8P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Measure CVTF temperature sensor resistance between the solenoid harness 8P connector terminals No. 6 and No. 7.
Standard: 50 Ω-25 kΩ
If the resistance is out of standard, replace the CVTF temperature sensor (see CVTF TEMPERATURE SENSOR REPLACEMENT ).
Connect the connector securely.
Install the air cleaner assembly (see AIR CLEANER REMOVAL/INSTALLATION ).
