2012 Honda Insight BaseFACTORY OEM SERVICE PROCEDURE
CVT Fluid Replacement
NOTE:
Keep all foreign particles out of the transmission.
- Start the engine, and warm it up to normal operating temperature (the radiator fan comes on twice).
- Park the vehicle on level ground, and turn the engine off.
- Raise the vehicle on a lift, and make sure it is securely supported.

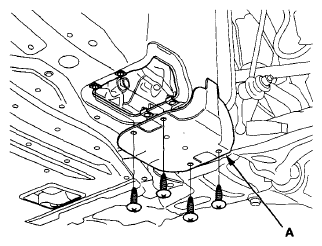

- Remove the lid (A) for maintenance.
- Remove the drain plug (A), and drain the CVTF. Reinstall the drain plug with a new sealing washer (B).NOTE:
- Remove metal particles from the magnetic surface of the drain plug.
- If a cooler cleaning is necessary, refer to the CVTF COOLER CLEANING .
