Voice Control Switch Replacement
SRS components are located in this area. Review the SRS component location (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) in the SRS section before doing repairs or service.
- Remove the steering wheel (see STEERING WHEEL REMOVAL ).
- Remove the audio remote switch (see AUDIO REMOTE SWITCH REPLACEMENT ).

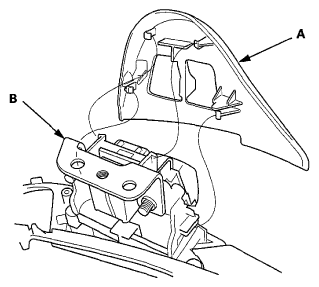

- Remove the switch cover (A) from the HFL-navigation voice control switch (B).

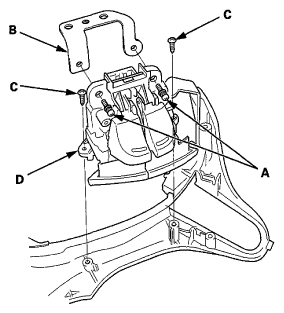

- Remove the screws (A), and remove the set plate (B).
- Remove the screws (C), and remove the HFL-navigation voice control switch (D).
- Install the HFL-navigation voice control switch in the reverse order of removal.
