2012 Honda Insight BaseFACTORY OEM SERVICE PROCEDURE
HFL-Navigation Microphone Removal/Installation
WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

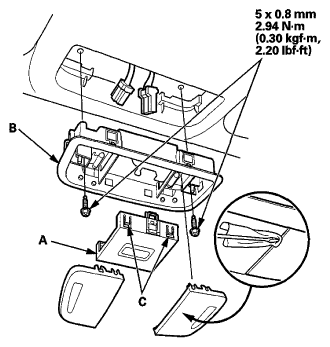

- Remove the front individual map light (see INDIVIDUAL MAP LIGHT TEST/REPLACEMENT ).
- Carefully pry off the microphone (A) from the map light housing (B) while pressing the retaining tabs (C).
- Install the HFL-navigation microphone in the reverse order of removal.
