2012 Honda Insight BaseFACTORY OEM SERVICE PROCEDURE
USB Adapter Unit Replacement
WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
- Remove the center console armrest (see CENTER CONSOLE ARMREST REPLACEMENT ).
- Remove the console box (see CENTER CONSOLE ARMREST REPLACEMENT ).

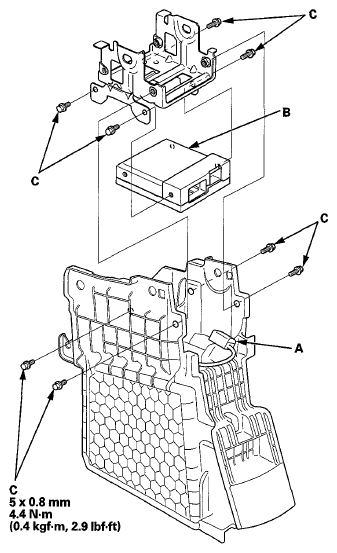

- Disconnect the connectors (A) from the USB adapter unit(B).
- Remove the mounting bolts (C) and the USB adapter unit.
- Install the USB adapter unit in the reverse order of removal.
