Battery Module
A light-weight and compact Ni-MH (nickel-metal hydride) battery supplies energy to the IMA system.
The battery module has seven blocks that are connected in series. Within each block are 12 1.2 V cells. The total battery voltage is a nominal 100 V.

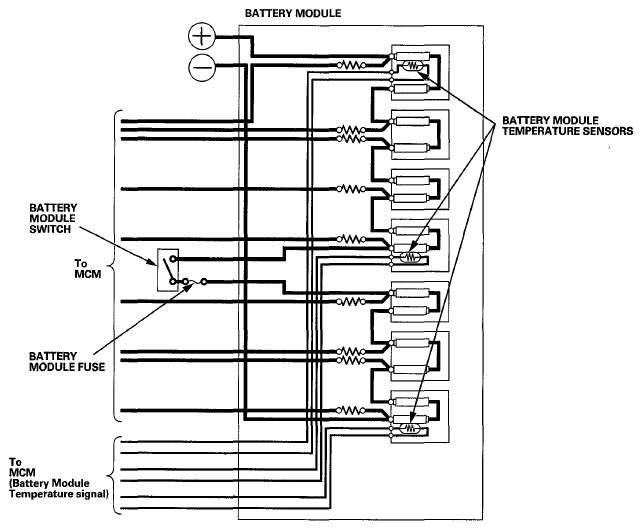

The battery module has three built-in thermistor temperature sensors to monitor battery temperature.
