2012 Honda Insight BaseFACTORY OEM SERVICE PROCEDURE
Rocker Arm Oil Control Valve Removal/Installation
- Remove the engine cover (see step 1 on REMOVAL ).

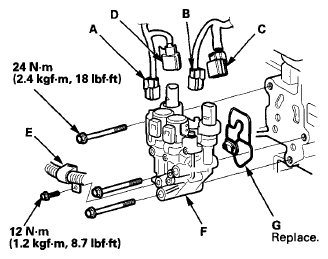

- Disconnect the rocker arm oil control solenoid B connector (A), the rocker arm oil control solenoid A connector (B), the rocker arm oil pressure sensor A connector (C), and the rocker arm oil pressure sensor B connector (D).
- Remove the harness holder (E) from the rocker arm oil control valve.
- Remove the bolts.
- Remove the rocker arm oil control valve (F).
- Install the valve in the reverse order of removal with a new rocker arm oil control valve filter (G).
