Secondary HO2S Replacement
Special Tools Required
O2 Sensor Wrench, Snap-on S6176 or equivalent, commercially available
- Remove the cowl cover and the under-cowl panel (see COWL COVER REPLACEMENT ).

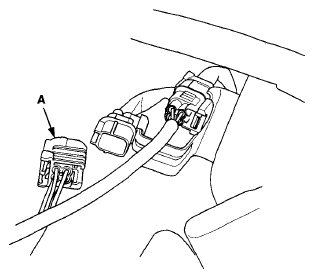

- Disconnect the secondary HO2S connector (A).
- Raise the vehicle on a lift.

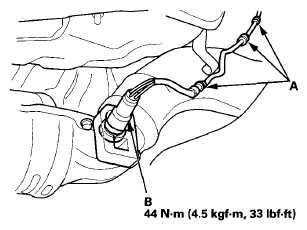

- Remove the wire clips (A), then remove the secondary HO2S (B).
- Install the parts in the reverse order of removal.
