2012 Honda Insight BaseFACTORY OEM SERVICE PROCEDURE
Fuel Fill Pipe Removal/Installation
- Drain the fuel tank until it is less than half full (see FUEL TANK DRAINING ).
- Remove the fuel fill cap.
- Raise the vehicle on a lift.
- Remove the left rear wheel.

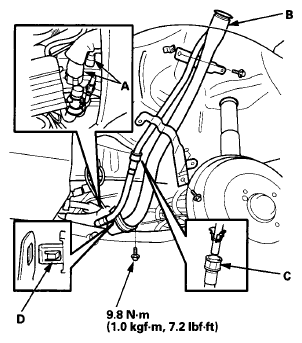

- Remove the fuel fill pipe cover (A).
- Disconnect the quick-connect fittings (A) (see FUEL LINE/QUICK-CONNECT FITTING REMOVAL ).
- Remove the fuel fill pipe (B).
- Disconnect the quick-connect fittings (C).
- Remove the clip (D) from the fuel fill pipe.
- Install the parts in the reverse order of removal.
