2012 Honda Insight BaseFACTORY OEM SERVICE PROCEDURE

EVAP Canister Vent Shut Valve Replacement

Raise the vehicle on a lift.
Disconnect the hoses from the EVAP canister filter. (see EVAP CANISTER FILTER REPLACEMENT )
Remove the bolts (A), then remove the canister guard (B).

Fig 1: Canister Guard And Mounting Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the EVAP canister vent shut valve 2P connector (A), then remove the harness clip (B).

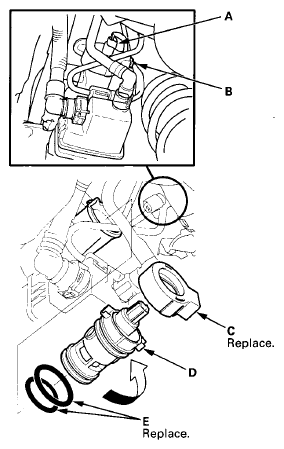

Fig 2: Identifying EVAP Canister Vent Shut Valve, 2P Connector, Harness Clip, Cap And O-Rings
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the cap (C).
Remove the EVAP canister vent shut valve (D).
Install the parts in the reverse order of removal with new O-rings (E) and a new cap.

NOTE: Do not coat the O-rings with engine oil.
