2012 Honda Insight BaseFACTORY OEM SERVICE PROCEDURE

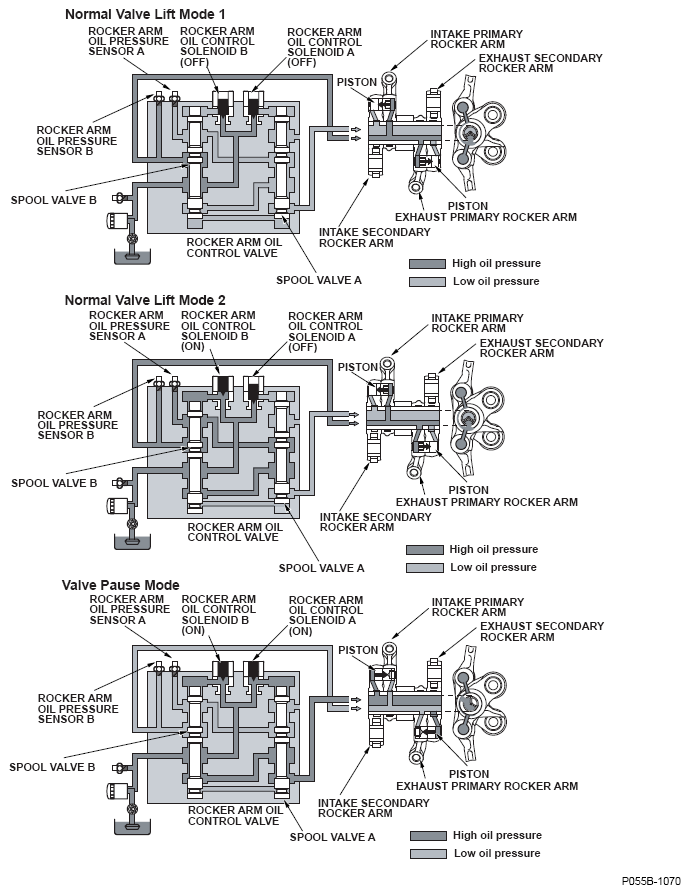

DTC P3400: Valve Pause System (VPS) Stuck OFF: Notes
| Command | Oil pressure condition | |||||
|---|---|---|---|---|---|---|
| Rocker Arm Oil Control Solenoid A | Rocker Arm Oil Control Solenoid B | Rocker Arm Oil Pressure Sensor A | Low | High | Low | High |
| Rocker Arm Oil Pressure Sensor B | Low | Low | High | High | ||
| OFF | OFF | Normal valve lift mode 1 | Failure (P1286) | Failure (P3400) | Normal | Failure (P128D) |
| OFF | ON | Normal valve lift mode 2 | Failure (P2646) | Failure (P1286) | Failure (P128C) | Normal |
| ON | ON | Valve pause mode | Normal | Failure (P055B) | Failure (P128A) | Failure (P2646) |
