DTC P0705: Short in Transmission Range Switch Circuit (Multiple Shift-Position Input): Notes

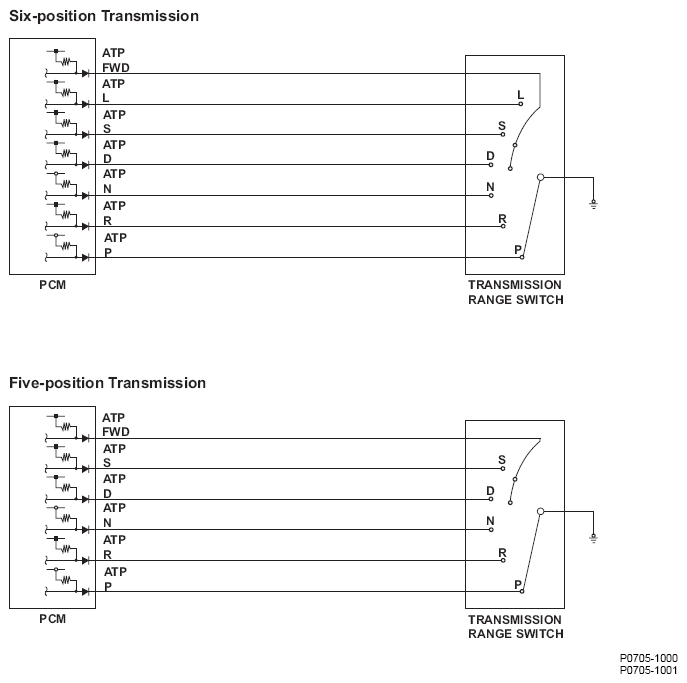

Transmission range switch contact point input matrix:
| Shift lever position | Input per switch | ||||||
|---|---|---|---|---|---|---|---|
| P | R | N | D | S | L | FWD | |
| P | O | X | X | X | X | X | X |
| R | X | O | X | X | X | X | X |
| N | X | X | O | X | X | X | X |
| D | X | X | X | O | X | X | O |
| S | X | X | X | X | O | X | O |
| L | X | X | X | X | X | O | X |
| Shift lever position | Input per switch | |||||
|---|---|---|---|---|---|---|
| P | R | N | D | S | FWD | |
| P | O | X | X | X | X | X |
| R | X | O | X | X | X | X |
| N | X | X | O | X | X | X |
| D | X | X | X | O | X | O |
| S | X | X | X | X | O | O |
| O: Closed X: Open | ||||||
