2012 Honda Insight BaseFACTORY OEM SERVICE PROCEDURE

Yaw Rate-Acceleration Sensor Replacement

NOTE:
  • Do not damage or drop the sensor as it is sensitive.
  • Do not use power tools.
  • Check the sensor bracket for a deformation.
  1. Turn the ignition switch to LOCK (0).
  2. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  3. Remove the yaw rate-acceleration sensor (A).

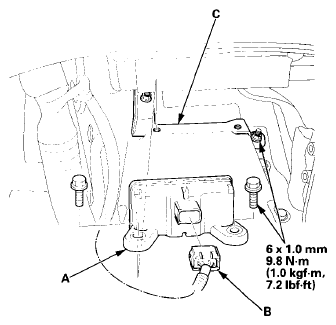

    Fig 1: Yaw Rate-Acceleration Sensor, Yaw Rate-Acceleration Sensor 4P Connector And Bracket With Torque Specifications
    G08093867Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Disconnect the yaw rate-acceleration sensor 4P connector (B).
  5. Check for deformation in the bracket (C). If necessary replace it.
  6. Install the yaw rate-acceleration sensor in the reverse order of removal.
  7. Do the VSA sensor neutral position memorization (see VSA SENSOR NEUTRAL POSITION MEMORIZATION ).
