2012 Honda Insight BaseFACTORY OEM SERVICE PROCEDURE
VSA Modulator-Control Unit Removal and Installation: Removal
- Turn the ignition switch to LOCK (0).

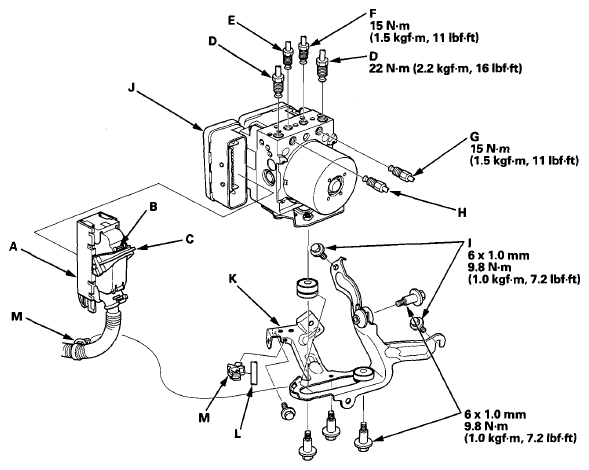

- Disconnect the VSA modulator-control unit 47P connector (A) by pushing the lock (B) and pulling down the lever (C); the connector disconnects itself.
- Disconnect the six brake lines from the VSA modulator-control unit.NOTE: Brake lines are connected to the master cylinder (D) and to the left-front (E), the right-front (F), the left-rear (G), and the right-rear (H) brake systems.
- Remove the 6x16 mm flange bolt (I), then remove the VSA modulator-control unit (J) with the bracket (K) from the body.
- Remove the receiver line (L) from the bracket, then remove the clips (M).
- Remove the VSA modulator-control unit from the bracket.
