2012 Honda Insight BaseFACTORY OEM SERVICE PROCEDURE
Driver's Power Window Motor Test
Motor Test
- Remove the power window master switch (see POWER WINDOW MASTER SWITCH REPLACEMENT ).

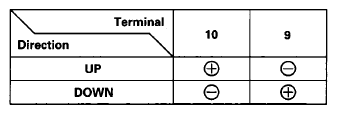

- Test the motor in each direction by connecting battery power and ground to the power window master switch 22P connector according to the table.
Terminal 10 9 Direction UP (+) (-) DOWN (-) (+)
