2012 Honda Insight BaseFACTORY OEM SERVICE PROCEDURE
Power Mirror Switch Test/Replacement
- Remove the instrument panel (see INSTRUMENT PANEL REMOVAL/INSTALLATION ).

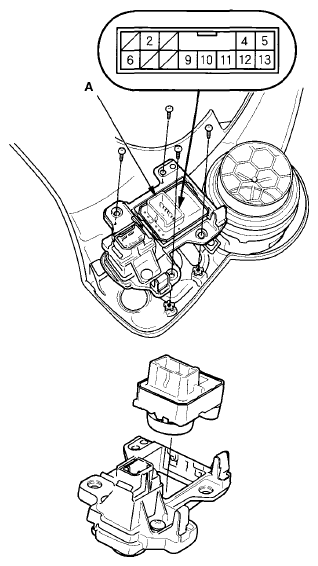

- Disconnect the 13P connector from the power mirror switch (A).

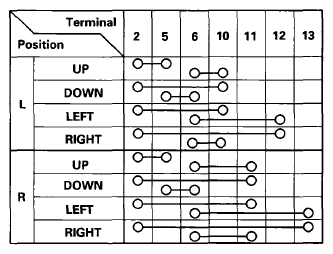

- Check for continuity between the terminals in each switch position according to the table.
Power Mirror Switch
- If the continuity is not as specified, remove the screws and the covers and replacement the switch.
- Install in the reverse order of removal.
