2012 Honda Insight BaseFACTORY OEM SERVICE PROCEDURE

Ignition Switch Test

NOTE: SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or servicing.
  1. Do the 12 volt battery terminal disconnection procedure (see USING THE GR8 BATTERY DIAGNOSTIC STATION ).
  2. Remove the steering column covers (see COLUMN COVER REMOVAL/INSTALLATION ).
  3. Disconnect the 7P connector (A) from the ignition switch (B).
    Fig 1: Identifying Ignition Switch 7P Connector Terminals
    G08094532Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Check for continuity between the terminals in each switch position according to the table.

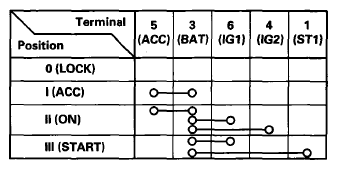

    Fig 2: Ignition Switch Terminal Continuity Chart
    G08094533Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. If the continuity is not as specified, replace the ignition switch (see IGNITION SWITCH REPLACEMENT ).
  6. Do the 12 volt battery terminal reconnection procedure, (see RECONNECTION )
