SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

NOTE: Do not damage or drop the combination switch as the steering angle sensor is sensitive to shock and vibration.

With the wheels in the straight-ahead position and the steering wheel centered, remove the steering wheel (see STEERING WHEEL REMOVAL ).
Remove the steering column covers (see COLUMN COVER REMOVAL/INSTALLATION ) and the cable reel (see CABLE REEL REPLACEMENT ).
Remove the combination switch assembly (see step 12 STEERING COLUMN REMOVAL AND INSTALLATION ).

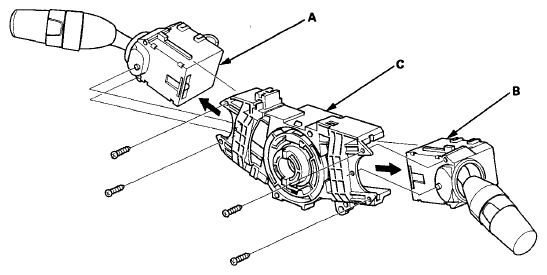

Remove the combination light switch (A) and the wiper/washer switch (B) from the combination switch body assembly (C).

Fig 1: Locating Combination Light Switch, Wiper/Washer Switch And Combination Switch Body Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the combination switch body assembly in the reverse order of removal.
NOTE:
- Do not remove the steering angle sensor from the combination switch body.
- When installing the cable reel, set the turn signal canceling sleeve position so that the arrow points straight up (see step 3 INSTALLATION ).
- Note that the tightening order is specified for the combination switch mounting screws (see step 1 STEERING COLUMN REMOVAL AND INSTALLATION ).
