2012 Honda Insight BaseFACTORY OEM SERVICE PROCEDURE

Power Window Master Switch Replacement

Remove the armrest trim (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
Remove the switch panel from the door panel.
Disconnect the 22P connector (A) from the power window master switch (B).

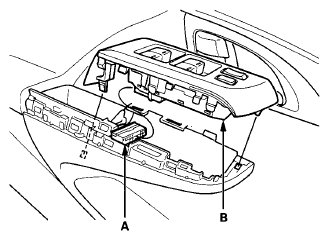

Fig 1: Identifying Power Window Master Switch And 22P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the four screws and the switch (A).

Fig 2: Identifying Switch And Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the power window master switch in the reverse order of removal.
After replacement, reset the power window control unit (see RESETTING THE POWER WINDOW CONTROL UNIT ).
