2012 Honda Fit Base, Standard TransFACTORY OEM SERVICE PROCEDURE

Rocker Arm Oil Control Valve Removal/Installation

Remove the harness holder (A).

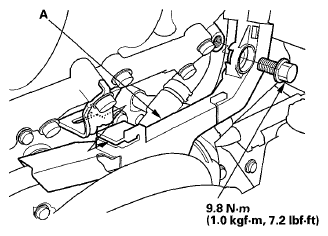

Fig 1: Identifying Harness Holder
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the rocker arm oil control solenoid connector (A) and the rocker arm oil pressure switch connector (B).

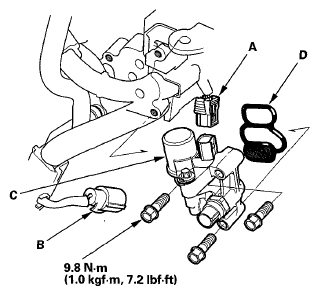

Fig 2: Identifying Rocker Arm Oil Control Solenoid Connector & Rocker Arm Oil Pressure Switch Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the rocker arm oil control valve assembly (C) and the rocker arm oil control valve filter (D).
Install the parts in the reverse order of removal with a new rocker arm oil control valve filter.
