N Position

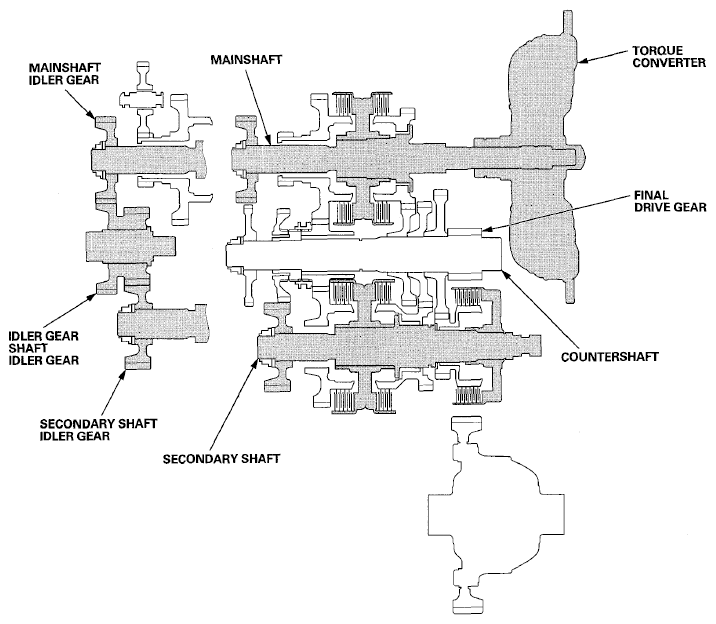

Engine power transmitted from the torque converter drives the mainshaft idler gear, the idler gear shaft idler gear, and the secondary shaft idler gear, but hydraulic pressure is not applied to the clutches. Power is not transmitted to the countershaft. In this position, the position of the reverse selector differs according to whether the shift lever was shifted from D or R:
- When shifted from D, the reverse selector engages with the countershaft 4th-5th gear and the reverse selector hub, and 4th-5th gear engages with the countershaft.
- When shifted from R, the reverse selector engages with the countershaft reverse gear and the reverse selector hub, and the reverse gear engages with the countershaft.
