2012 Honda Fit Base, Automatic TransFACTORY OEM SERVICE PROCEDURE

System Description: Accumulator

The accumulators are located in the regulator valve body and servo body. The regulator valve body contains the 1st and 4th accumulators, and the servo body contains the 2nd, 3rd, and 5th accumulators.

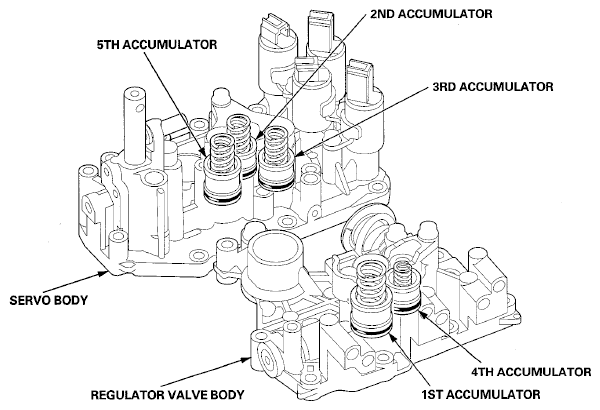

Fig 1: Identifying Accumulator Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.
