2012 Honda Fit Base, Automatic TransFACTORY OEM SERVICE PROCEDURE
Shift Lever Installation

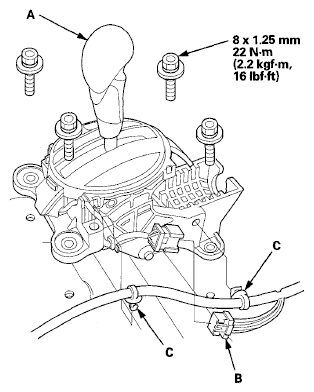

- Install the shift lever assembly (A).
- Connect the shift lock solenoid/park pin switch/A/T gear position indicator panel light connector (B), and install the harness clamps (C) on the shift lever bracket base.
- Install the shift cable on the shift lever, and adjust the shift cable (see step 5 ).
