2012 Honda Fit Base, Automatic TransFACTORY OEM SERVICE PROCEDURE
Microphone Replacement
WARNING: This page is about a different car, the 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

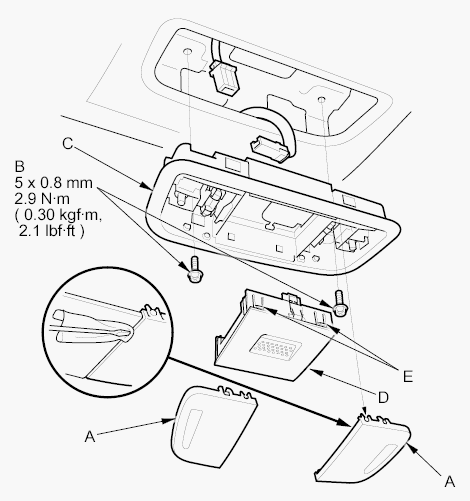

- Remove the front individual map light lens (A) using a flat-tip screwdriver.
- Remove the bolts (B), then disconnect the connectors, and remove the map light housing (C).
- Carefully pry off the microphone housing (D) from the map light housing while pressing the retaining tabs (E).
- Install the microphone in the reverse order removal.
