Torque Rod Replacement
- Raise the vehicle on the lift.
- Support the transmission with a transmission jack and a wood block under the transmission and raise it just enough to free the torque rod, then remove the torque rod.
M/T model
A/T model
- Install the torque rod (A).NOTE: Be sure to install the torque rod with the "UP" mark facing up.
- Install the bolt (B) with the tab (C) on the bolt head aligned with the guide (D) on the front subframe, then loosely install a new torque rod mounting bolt (E) and nut (F).
- Remove the transmission jack and the wood block from under the transmission.
- Tighten the torque rod mounting bolt and nut in the numbered sequence shown below.

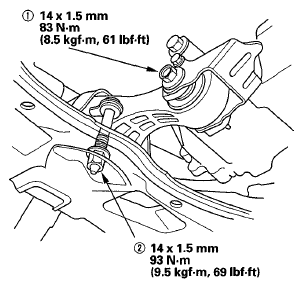

M/T model
Courtesy of AMERICAN HONDA MOTOR CO., INC.

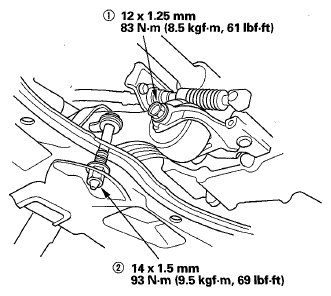

A/T model
