Alternator Control Circuit Troubleshooting
- Do this troubleshooting if, in step 4 of the alternator and regulator circuit troubleshooting, the battery voltage is less than 13.2 V. (See Alternator and Regulator Circuit Troubleshooting , Step 4).
- Information marked with an asterisk (*1) applies to '09-10 models and '11-12 models (M/T).
- Information marked with an asterisk (*2) applies to '11-12 models (A/T).
- Connect the Honda Diagnostic System (HDS) to the data link connector (DLC) (see step 2 on GENERAL TROUBLESHOOTING INFORMATION ).
- Turn the ignition switch to ON (II).
- Make sure the HDS communicates with the vehicle and the engine control module (ECM)/powertrain control module (PCM). If it doesn't communicate, troubleshoot the DLC circuit (see DLC CIRCUIT TROUBLESHOOTING ).
- Check for DTCs (see GENERAL TROUBLESHOOTING INFORMATION ). If a DTC is present, diagnose and repair the cause before continuing with this test.
- Disconnect the alternator 4P connector from the alternator.
- Start the engine, and turn on the headlights to high beam.

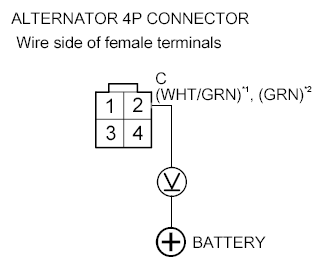

- Measure the voltage between alternator 4P connector terminal No. 2 and the positive terminal of the battery.Fig 1: Measuring Voltage Between Alternator 4P Connector Terminal No. 2 & Positive Terminal Of Battery
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there 1 V or less?
YES - Go to step 11.
NO - Go to step 8.
- Jump the SCS line with the HDS, then turn the ignition switch to LOCK (0).NOTE: This step must be done to protect the ECM/PCM from damage.
- Disconnect ECM/PCM connector B (49P).

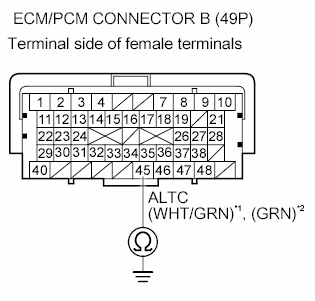

- Check for continuity between ECM/PCM connector terminal B45 and body ground.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES - Repair short in the wire between the alternator and the ECM/PCM.
NO - Update the ECM/PCM if it does not have the latest software (see ECM/PCM UPDATE ), or substitute a known-good ECM/PCM (see SUBSTITUTING THE ECM/PCM ), then recheck. If the symptom/indication goes away with a known-good ECM/PCM, replace the original ECM/PCM (see ECM/PCM REPLACEMENT ).
- Jump the SCS line with the HDS, then turn the ignition switch to LOCK (0).NOTE: This step must be done to protect the ECM/PCM from damage.
- Disconnect ECM/PCM connector B (49P).

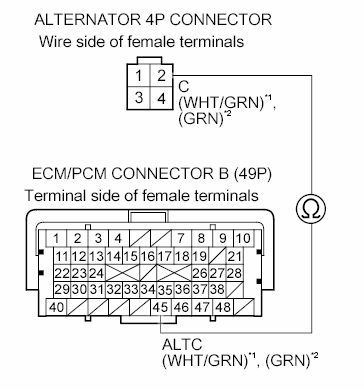

- Check for loose terminals and connectors, then check for continuity between ECM/PCM connector terminal B45 and alternator 4P connector terminal No. 2.Fig 3: Checking Continuity Between ECM/PCM Connector Terminal B45 & Alternator 4P Connector Terminal No. 2
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES - Replace the alternator (see ALTERNATOR REMOVAL AND INSTALLATION ), or repair the alternator (see ALTERNATOR OVERHAUL ).
NO - Repair open in the wire between the alternator and the ECM/PCM.
