2012 Honda Fit Base, Automatic TransFACTORY OEM SERVICE PROCEDURE
Battery Terminal Fuse Box
Battery Terminal Fuse Box

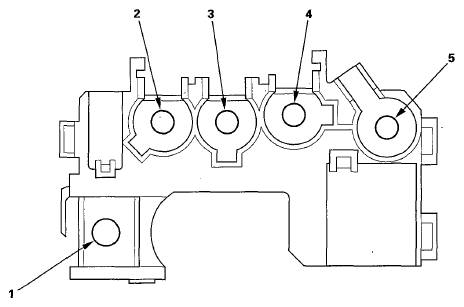

BATTERY TERMINAL FUSE BOX TABLE
| Socket | Ref | Terminal | Connects to (1) |
||
|---|---|---|---|---|---|
| T1 | 1 | - | Battery terminal, Starter | ||
| T2 | 2 | - | Engine wire harness | ||
| T3 | 3 | - | Left engine compartment wire harness | ||
| T4 | 4 | - | Left engine compartment wire harness | ||
| T5 | 5 | - | Left engine compartment wire harness | ||
|
|||||
