2012 Honda Fit Base, Automatic TransFACTORY OEM SERVICE PROCEDURE
Passenger's Power Window Switch Replacement
NOTE:

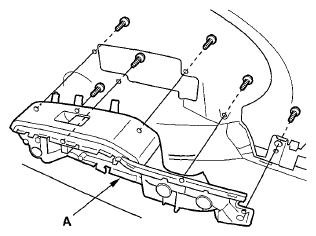

The graphic shows front passenger's power window switch.
- Remove the door panel:
- Front passenger's (see FRONT DOOR PANEL REMOVAL/INSTALLATION )
- Rear (see REAR DOOR PANEL REMOVAL/INSTALLATION )
- Remove the screws and the grip base (A).
- Open the switch panel (A) from the grip base.
- Remove the screws and replace the passenger's power window switch (B).
- Install the parts in the reverse order of removal.
