2012 Honda CR-Z Base, Standard TransFACTORY OEM SERVICE PROCEDURE
Yaw Rate-Acceleration Sensor Replacement
NOTE:
- Do not damage or drop the sensor as it is sensitive.
- Do not use power tools when replacing the sensor.
- Check the yaw rate-acceleration sensor bracket for a deformation.
- Turn the ignition switch to LOCK (0).

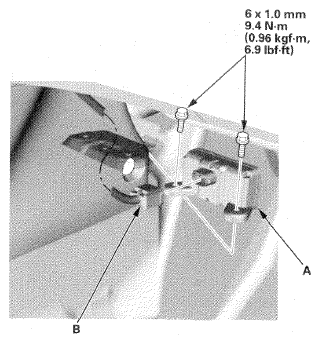

- Remove the yaw rate-acceleration sensor (A).
- Disconnect the yaw rate-acceleration sensor 4P connector (B).
- Install the yaw rate-acceleration sensor in the reverse order of removal.
- Do the VSA sensor neutral position memorization (see VSA SENSOR NEUTRAL POSITION MEMORIZATION ).
