2012 Honda CR-Z Base, Standard TransFACTORY OEM SERVICE PROCEDURE
VSA Off Switch Test/Replacement
- Turn the ignition switch to LOCK (0).
- Remove the instrument panel (see INSTRUMENT PANEL REMOVAL/INSTALLATION ).
- Push out the VSA OFF switch (A) from the back of the instrument panel (B).

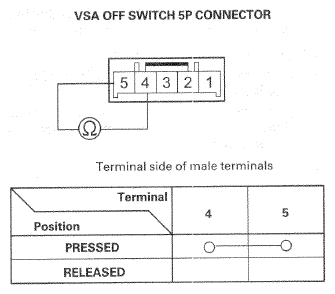

- On the switch side, check for continuity between the VSA OFF switch 5P connector terminal in each switch position according to the table.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- If the switch does not work as described in the table, replace the switch.
- If the switch tests OK, go to step 5.
- On the switch side, check for continuity between VSA OFF switch 5P connector terminals No. 1 and No. 2. There should be continuity at all times.

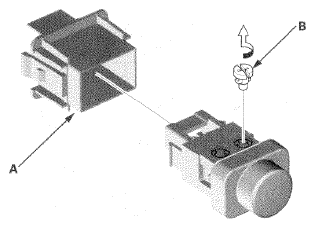

- If the continuity is not as specified, remove the cover (A), and replace the bulb (B).
- Install the VSA OFF switch in the reverse order of removal.
