2012 Honda CR-Z Base, Standard TransFACTORY OEM SERVICE PROCEDURE

Power Window Master Switch Replacement

Remove the pocket cap (see DOOR PANEL REMOVAL/INSTALLATION ).
Remove the switch panel from the door panel.
Disconnect the 22P connector (A) from the power window master switch (B).

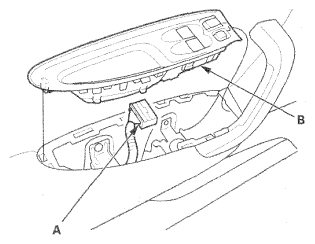

Fig 1: Identifying Power Window Master Switch With 22P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the four screws and the power window master switch (A).

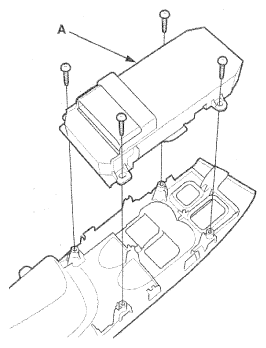

Fig 2: Identifying Power Window Master Switch And Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the switch in the reverse order of removal.
After replacement, reset the power window control unit (see RESETTING THE POWER WINDOW CONTROL UNIT ).
