2011 Honda Insight BaseFACTORY OEM SERVICE PROCEDURE
Fuel Pulsation Damper Replacement
- Relieve the fuel pressure (see FUEL PRESSURE RELIEVING ).
- Remove the engine cover (see step 2 IGNITION COIL REPLACEMENT ).
- Remove the intake manifold (see INTAKE MANIFOLD REMOVAL AND INSTALLATION ).
- Remove the fuel rail mounting nuts from the fuel rail.
- Disconnect the fuel injector connectors.
- Remove the fuel rail.

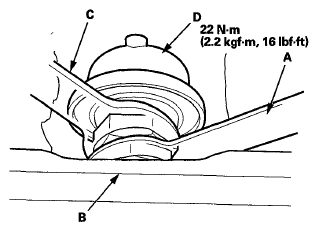

- Place a wrench (A) on the fuel rail (B).
- Place second wrench (C) on the fuel pulsation damper (D).
- Remove the pulsation damper by holding the first wrench while turning the second wrench.
- Install the fuel pulsation damper in the reverse order of removal with new washers.NOTE:
- Replace all washers whenever the fuel pulsation damper is loosened or removed.
- If the drain hole (A) of the fuel pulsation damper cover does not face bottom, reinstall it as shown.
