2011 Honda Insight BaseFACTORY OEM SERVICE PROCEDURE
Fuel Pressure Regulator Replacement

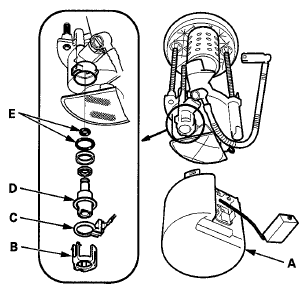

- Remove the fuel tank unit (see FUEL TANK UNIT REMOVAL AND INSTALLATION ).
- Remove the reservoir (A).
- Remove the bracket (B).
- Remove the ground ring (C).
- Remove the fuel pressure regulator (D).
- Install the parts in the reverse order of removal with new O-rings (E) and a new bracket. When installing the fuel tank unit, align the marks on the unit and the fuel tank (see INSTALLATION
).NOTE:
- Coat the O-rings with clean engine oil; do not use any other oils or fluids.
- Do not pinch the O-rings during installation.
- Use all the new parts supplied in the pressure regulator replacement kit.
