2011 Honda Insight BaseFACTORY OEM SERVICE PROCEDURE

Wheel Speed Sensor Replacement: Rear

  1. Turn the ignition switch to LOCK (0).
  2. Remove the rear wheels.
  3. Release the connector holding clamps (A), then disconnect the wheel sensor connector (B).

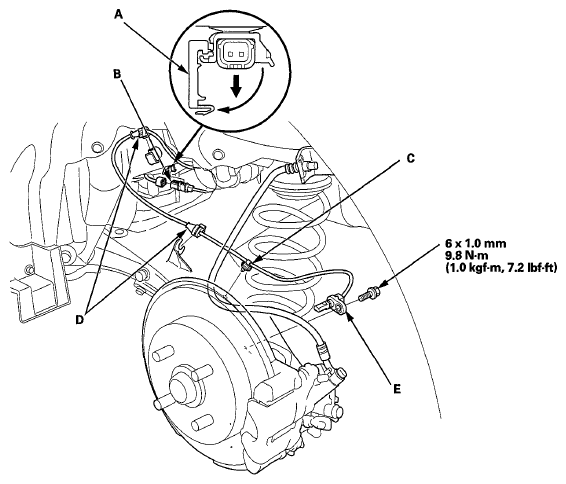

    Fig 1: Connector Holding Clamps, Wheel Sensor Connector And Bolt With Torque Specifications
    G06430805Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the clip (C) and the grommets (D).
  5. Remove the bolt and the wheel speed sensor (E).
  6. Install the wheel speed sensor in the reverse order of removal, and note these items:
    • Do not twist the sensor wires.
    • If the wheel speed sensor comes in contact with the hub bearing unit, it is faulty.
    • Make sure the grommet is installed properly.
    • Make sure there is no debris in the sensor mounting hole.
  7. Start the engine, and make sure the ABS indicator go off.
  8. Test-drive the vehicle, and make sure the ABS indicator do not come on.
