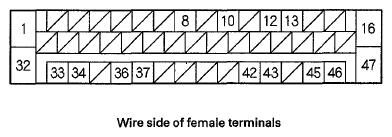

Fig 1: Identifying ABS Modulator-Control Unit Inputs And Outputs For 47P Connector

Courtesy of AMERICAN HONDA MOTOR CO., INC.

WIRE COLOR REFERENCE

Terminal number	Wire color	Terminal sign	Description	Signal
1	GRN	MR+B	Power source for the motor relay	Battery voltage (about 12 V) at all times
8	PUR	IG1	Power source for activating the system	With ignition switch ON (II): battery voltage (about 12 V)
10	RED	K-LINE	Communication with HDS	-
12	WHT	CANH	F-CAN communication circuit
13	RED	CANL	F-CAN communication circuit
16	BLK	GND	Ground for the ABS modulator-control unit	Continuity to ground
32	WHT	FSR+B	Power source for the fail-safe relay	Battery voltage (about 12 V) at all times
33	BLU	FR-GND	Detects right-front wheel sensor signal	-
34	YEL	FR+B	Detects right-front wheel sensor signal	-
36	PNK	RL+B	Detects left-rear wheel sensor signal	-
37	GRY	RL-GND	Detects left-rear wheel sensor signal
42	WHT	RR-GND	Detects right-rear wheel sensor signal
43	GRN	RR+B	Detects right-rear wheel sensor signal
45	LT GRN	FL+B	Detects left-front wheel sensor signal
46	BRN	FL-GND	Detects left-front wheel sensor signal
47	BLK	MR-GND	Ground for the pump motor	Continuity to ground
