2011 Honda Insight BaseFACTORY OEM SERVICE PROCEDURE
Park Pin Switch Test
- Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).

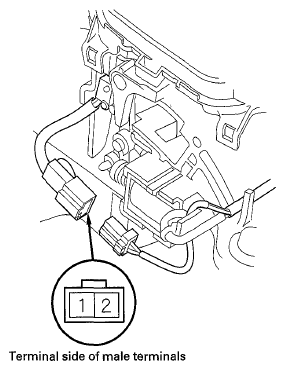

- Disconnect the park pin switch 2P connector (A).
- Check for continuity between connector terminals No. 1 and No. 2.
- There should be continuity when the shift lever is moved out of P.
- There should be no continuity when the shift lever is moved to P.
- If the park pin switch fails the test, replace the park pin switch (see PARK PIN SWITCH REPLACEMENT ).
