2011 Honda Fit L4-1.5LFACTORY OEM SERVICE PROCEDURE
Subframe: Service and Repair
Subframe Replacement

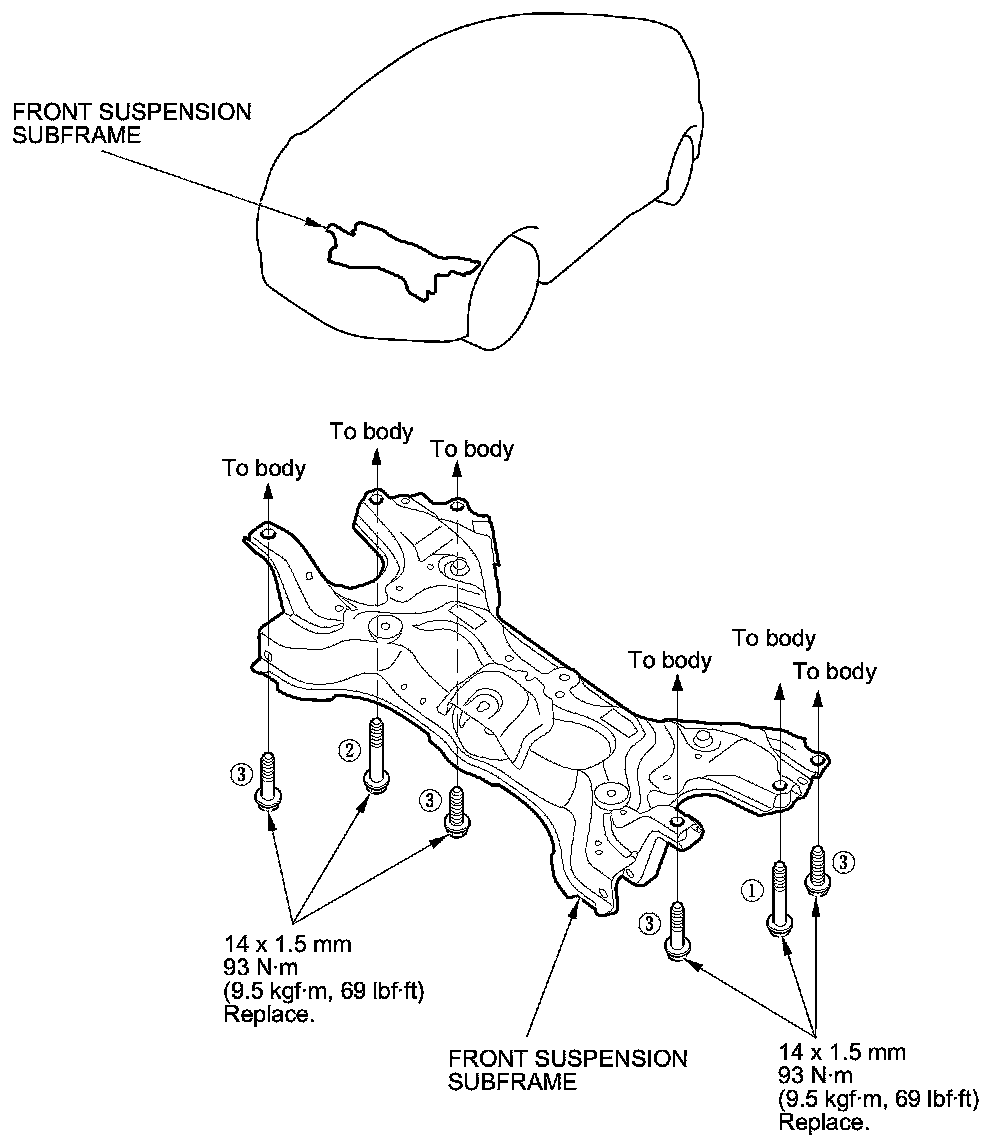

Front Subframe Torque
NOTE:
- After loosening the subframe mounting bolts, be sure to replace them with new ones.
- Loosely install new front subframe mounting bolts, then tighten the bolts to the specified torque in the sequence shown.
- Tighten the new front subframe mounting bolts in the numbered sequence shown.
