2011 Honda Fit Base, AutomaticFACTORY OEM SERVICE PROCEDURE

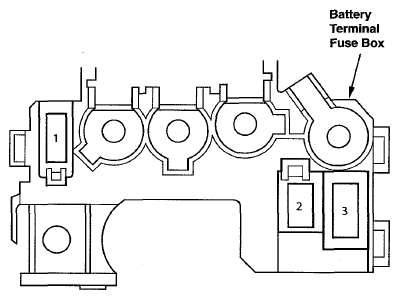

Fuse-to-Components Index
| Fuse Number | Fuse Name | Amps | See | Component or Circuit Protected | Notes |
|---|---|---|---|---|---|
| 1 | - | 100A | POWER DISTRIBUTION | Alternator, Driver's Door Unlock Relay, ELD Unit, Fuses 1, 2, 3, 4, 9, 25, 26, 27, 28, 29, 30, 33, 37, 39, 40, 41, 42, 43, 45, 46, 47, 52, 53, 57, 58, 59, and Multi-fuse 60 in Under-dash Fuse/Relay Box, Headlight Low Beam Relay, Power Window Relay | |
| 2 | - | 70A | POWER DISTRIBUTION | EPS Control Unit | |
| 3 | - | 20A | POWER DISTRIBUTION | Fuses 23 and 24 in Under-dash Fuse/Relay Box |
