2010 Honda Fit Sport, AutomaticFACTORY OEM SERVICE PROCEDURE

APP Sensor Signal Inspection

NOTE:
  • This procedure checks the APP sensor in its fully closed position. In any other position, the APP sensor stores DTCs which are covered in other troubleshooting procedures.
  • Check for Pending or Confirmed DTCs with the HDS before doing this procedure. If any DTCs are indicated, troubleshoot them first, then do this procedure.
  • Press the accelerator pedal several times to check its operation. If it does not operate smoothly, check the pedal. If you find a problem, replace the accelerator pedal module (see ACCELERATOR PEDAL MODULE REMOVAL/INSTALLATION  ).

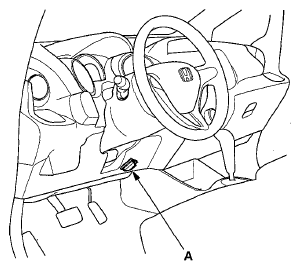

  1. Connect the HDS to the data link connector (DLC) (A) located under the driver's side of the dashboard.
    Fig 1: Identifying Data Link Connector (DLC)
    G05953084Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Turn the ignition switch to ON (II).
  3. Make sure the HDS communicates with the ECM/PCM. If it doesn't, go to DLC CIRCUIT TROUBLESHOOTING .
  4. Make sure the accelerator pedal is not pressed, then check the APP SENSOR in the DATA LIST with the HDS.
    • If it is 0%, the APP sensor is OK.
    • If it is not 0%, update the ECM/PCM if it does not have the latest software (see ECM/PCM UPDATE ), or substitute a known-good ECM/PCM (see SUBSTITUTING THE ECM/PCM ), then go to step  5.
  5. Make sure the accelerator pedal is not pressed, then check the APP SENSOR in the DATA LIST with the HDS.
