2010 Honda Element SC, StandardFACTORY OEM SERVICE PROCEDURE

DTC P1731: Problem in Shift Control System:: Notes

Shift Solenoid Valve E Stuck ON
Shift Valve E Stuck
A/T Clutch Pressure Control Solenoid Valve A Stuck OFF

Fig 1: A/T Clutch Pressure Control Solenoid Valves Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.

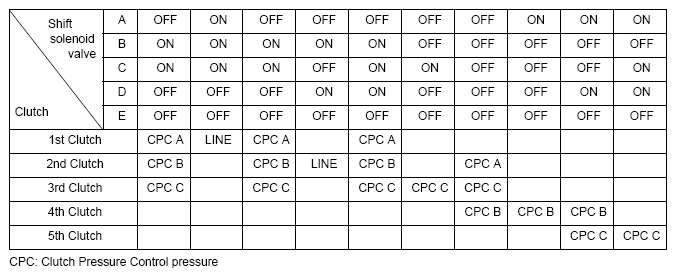

Fig 2: Shift Solenoid Valve Output (D Position)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
