2008 Honda Fit Base, AutomaticFACTORY OEM SERVICE PROCEDURE

EVAP Canister Replacement

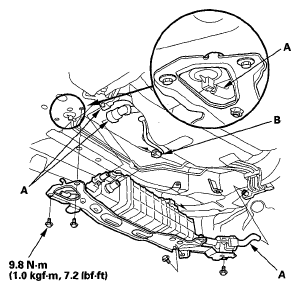

Remove the floor center cross-member stiffener (A).

Fig 1: Floor Center Cross-Member Stiffener With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

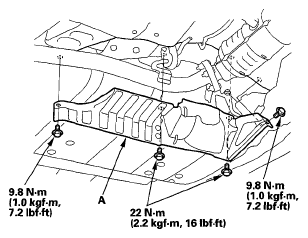

Remove the fuel tank cover (A).

Fig 2: Fuel Tank Cover With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the fuel pipe cover (A).

Fig 3: Identifying Fuel Pipe Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the hoses (A), and disconnect the EVAP canister subharness 6P connector (B).

Fig 4: EVAP Canister Subharness 6P Connector And Hoses With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts (A).

Fig 5: EVAP Canister Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the EVAP canister assembly (B).
Disconnect the FTP sensor connector (C), hose (D), and clips (E).
Install the parts in the reverse order of removal.
