2008 Honda Element SC, AutomaticFACTORY OEM SERVICE PROCEDURE
Fuel Pressure Regulator Replacement

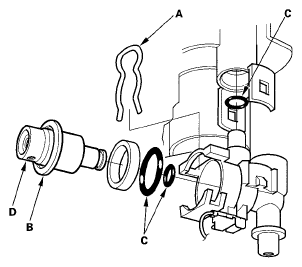

- Remove the fuel tank unit (see FUEL TANK UNIT REMOVAL/INSTALLATION ).
- Remove the clip (A).
- Remove the fuel pressure regulator (B).
- Install the parts in the reverse order of removal with new O-rings (C).
Make sure the regulator is installed with the drain hole (D) facing down.
NOTE: Coat the O-rings with clean engine oil. Do not pinch the O-rings during installation. Never apply brake fluid, vegetable oil, or alcohol-based oil to the O-rings.
