2007 Honda Ridgeline RTLFACTORY OEM SERVICE PROCEDURE
Back Power Window Position Switch Test
- Remove the rear panel trim (see REAR PANEL INSULATOR REPLACEMENT ).

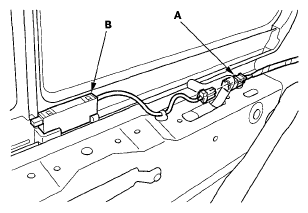

- Disconnect the 2P connector (A) from the back power window position switch (B).
- Check for continuity between the terminals.
- There should be continuity between the No. 1 and No. 2 terminals when the back power window middle glass is opened.
- There should not be continuity between the No. 1 and No. 2 terminals when the back power window is closed.
- If the continuity is not as specified, replace the switch.
